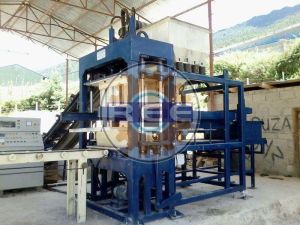

Fly Ash Brick Making Machine (RBM-30)

Fly Ash Brick Making Machine (RBM-30)

Product Details

Weight 100-500kg, 1000-2000kg, 500-1000kg
Color All Color
Voltage 220V, 380V, 450V
Condition New
Automatic Grade Automatic, Semi Automatic
Power 3-5kw, 7-9kw, 9-12kw
Driven Type Electrical
Warrenty 5 Years

Amusing our customers with our terrific performance, we have held our status as a top name in the industry. We feel elated to present Fly Ash Brick Making Machine (RBM-30) to our customers. We undergo a methodical process of vendor selection to obtain raw materials only from the vendors who are capable to consistently deliver top notch quality. It is available for marginal rates.



Details :

  • Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC,) Limit Switch/Proximity Sensors, Hopper,  Cylinder Made by Honed Tube. Piston Is Hard Chrome.
  • Production Capacity  28,000 to 32,000 Bricks/Shift. 10 H.P. Mould Vibrator, [Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC



Features :

  • Hollow Block 8”x8”x16” 06Pcs/Stroke=4500 To 5500 Blocks/Shift
  • Solid Block 8”x8”x16” 06Pcs/Stroke=6000 to 7000 Blocks/Shift
  • Total Power - 64 H.P. OR 48 KW
  • Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,  with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 20HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
  • Brick Mould - (24Cavity). 24 Bricks/Stroke  with Frog (Name in Brick).
  • Pan Mixer - 2 No. “Reva” Pan Mixer having capacity of 650 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 20 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
  • Pallet Trucks - 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
  • Pallet Conveyor - Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.
