Reva Engineering Enterprises is an ISO 9001: 2008 Certified Company, based in New Delhi, catering to the needs of a number of industries. The company is a name to reckon within in the field of manufacturing, exporting, and supplying of different types of machines. Our range includes Construction Machine, CLC Block Making Machine, Manual Earth Block Making Machine,Hydro Power Plant Equipment, etc.

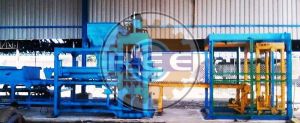

Fly Ash Brick Making Machine (RBM-25)


Fly Ash Brick Making Machine (RBM-25)

Bringing into play the industrial expertise gained over the course of many years, we keep coming up with products meeting the exact needs of the customers. As a Manufacturer, Supplier and Exporter, we offer yet another quality product in the form of Fly Ash Brick Making Machine (RBM-25). It is known for its low maintenance, optimum design and maximum efficiency. Lay your hands on it at reasonable rates.



Details :

  • Heavy structure body with four nos. of shaft to guide the Ram Punch of Mould, Electric Panel (With Mitsubishi PLC,) Limit Switch/Proximity Sensors, Hopper,  Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity  24,000 to 26,000 Bricks/Shift. 7.5 H.P. Mould Vibrator.
  • Automatic material feeder and Pallet Feeder, Hydraulic operated, controlled by PLC.



Features :

  • Hollow Block 8”x8”x16” 06Pcs/Stroke=4500 To 5500 Blocks/Shift
  • Solid Block 8”x8”x16” 06Pcs/Stroke=6000 to 7000 Blocks/Shift
  • Total Power - 51 H.P. OR 38.25 KW
  • Hydraulic System - Hydraulic Power pack of  300 Ltr. Capacity,  with Flange type motor, Douty Gear Pump, Yuken Valves, Oil filters at Incoming , outgoing and return line. Electric Motor 20HP 3PH of Crompton / Havells, Complete With Power Pack , Water cooler arrangement.
  • Brick Mould - (21Cavity). 21 Bricks/Stroke  with Frog (Name in Brick).
  • Pan Mixer - 2 No. “Reva” Pan Mixer having capacity of 550 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades, having special alloy steel tips, complete with quality Worm Reduction Gear Box of Elecon/Roto-Reva powered by 15 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.
  • Pallet Trucks - 2 Nos. “Reva” Pallet Trucks are fitted with Pneumatic Tyres, and manual dragging arrangement with lift capacity of 1000 Kgs.
  • Pallet Conveyor - Finished Bricks Conveying  Conveyor  12 Feet Approx, Powered by 1/2 H.P. Geared Motor.
